Honda Transmission Fluid Change

Honda transmission fluid change 2017 Civic CVT featuring Faruk Kugay ENEOS Ambassador

Faruk Kugay is an ENEOS Ambassador and he competes in Formula Drift. He also has a shop at Sonoma Raceway called DEVSPEED.  They work on street cars, race cars, drift cars… they “kind of do everything,” including alignments and suspension work, but they also do basic maintenance. In this post he’ll be walking us through a Honda transmission fluid change on the CVT (continuously variable transmission) of a 2017 Honda Civic, showing the step-by-step of how to do it and what to expect. You can also watch the video with these instructions.

Steps for transmission fluid change:

  1. Getting started – undertray removal
  2. Filters—FYI
  3. Work warm
  4. Open the fill plug
  5. Remove drain plug
  6. Check drainage
  7. Crush washer change
  8. Refill transmission fluid
  9. About the interval
  10. How a CVT transmission works
  11. Finishing the service
Getting started – undertray removal

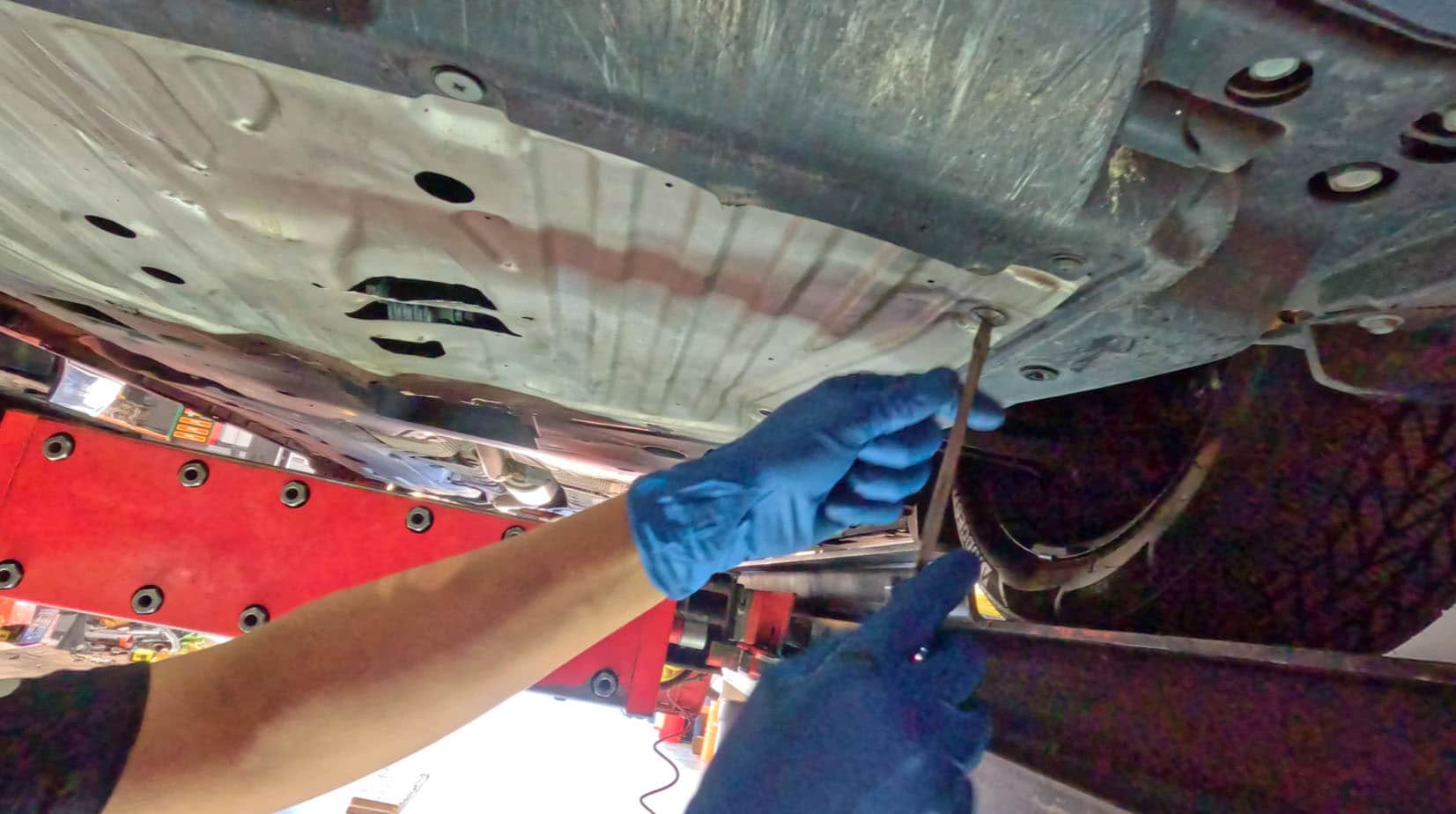

Honda transmission fluid change 2017 Civic CVT undertray removal

Let’s get this out of the way first!

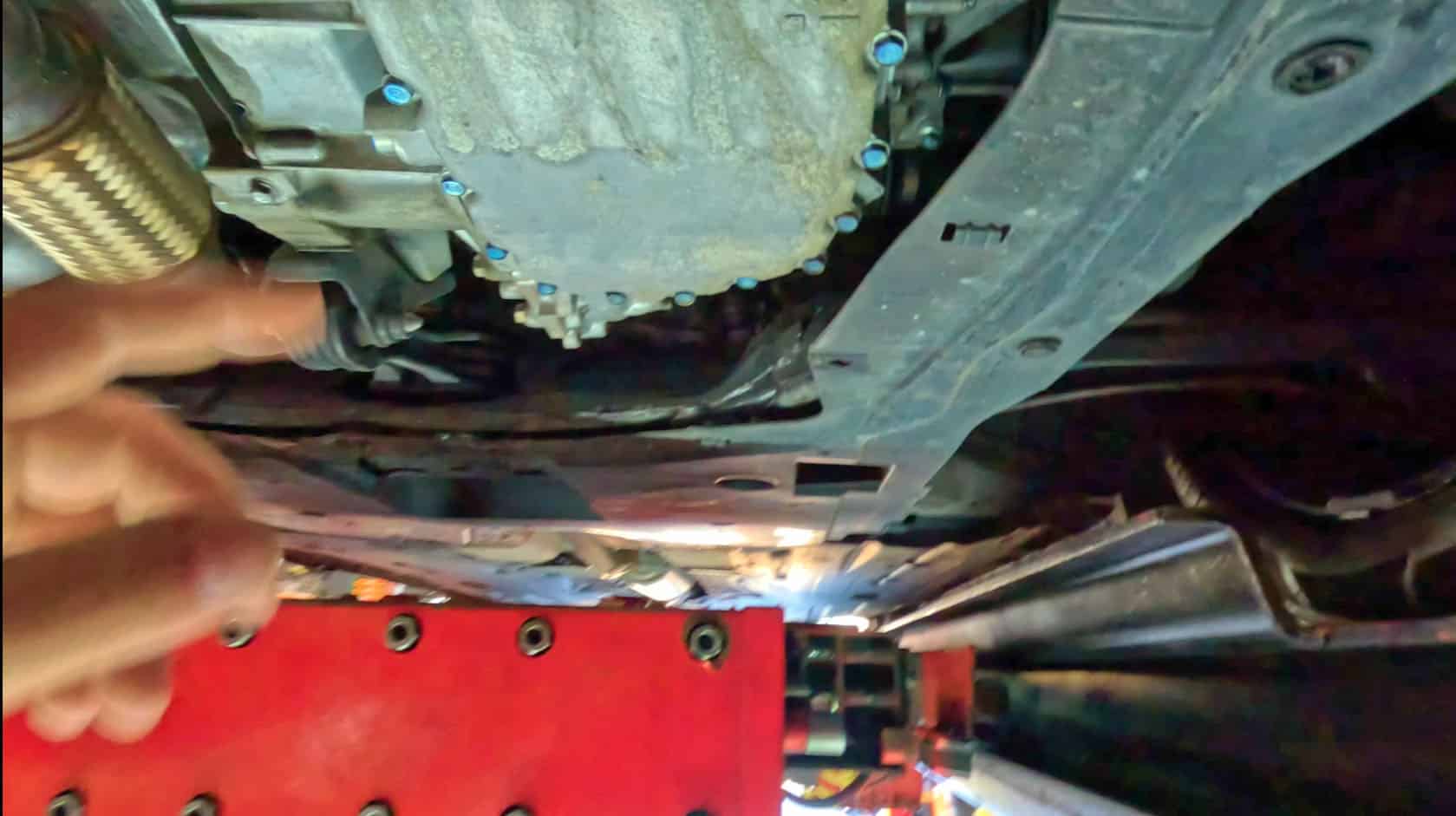

Honda transmission fluid change 2017 Civic CVT filters location

A couple interesting things about doing a CVT fluid change: First, there are two filters for the transmission: one underneath the pan (if you were to remove the pan), and also one on the side by the cooler. Neither of those gets changed unless there’s something wrong with the transmission, this is just a drain and fill procedure, 3.7 quarts every 25,000 miles or 36 months.

Work warm

Second thing, this Honda they are working on is a warm car. It’s it’s been warmed up properly, it was driving and pulled in hot, and that’s an important thing to remember when you’re doing the drain and fill on a car. The fluid needs to be hot because the fluid’s viscosity decreases and it becomes thinner when it’s warm and that way:

  1. It’ll have oil in all the right places, and
  2. You’ll get the most amount of fluid out of the vehicle

The factory service manual actually says it is meant to be changed while hot, so all the measurements and everything that you’re doing is meant for a vehicle that has been running and is still warm.

Open the fill plug

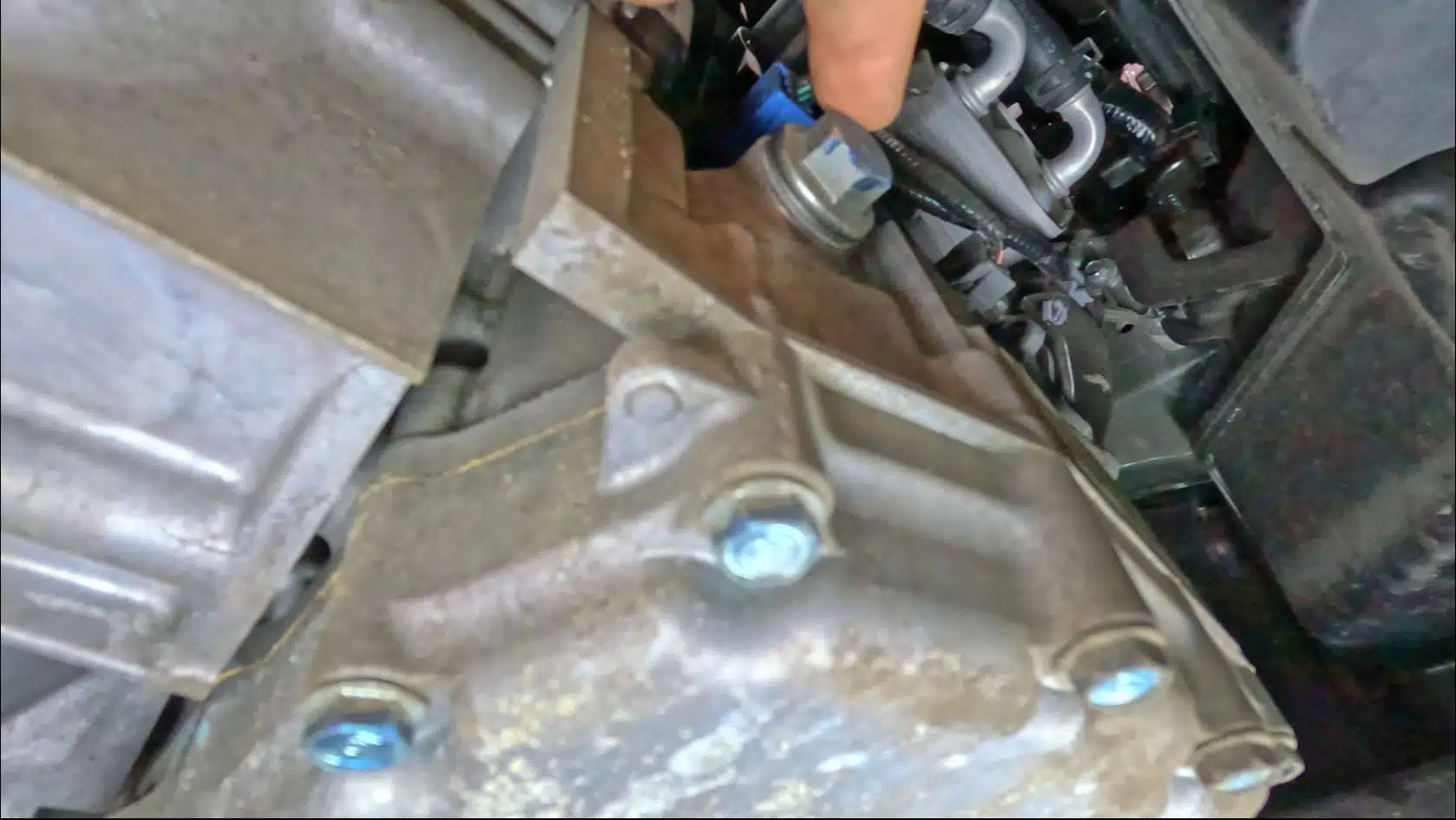

Honda transmission fluid change 2017 Civic CVT fill plug location

When you’re doing a transmission fluid change, or differential, or really anything that has a sealed case, you want to make sure you are able to break the fill plug loose before you drain the fluid. So, open the fill plug first to make sure it’s not stuck or corroded because last thing you want to do is drain the fluid out of a transmission and then not be able to fill it.

Remove drain plug

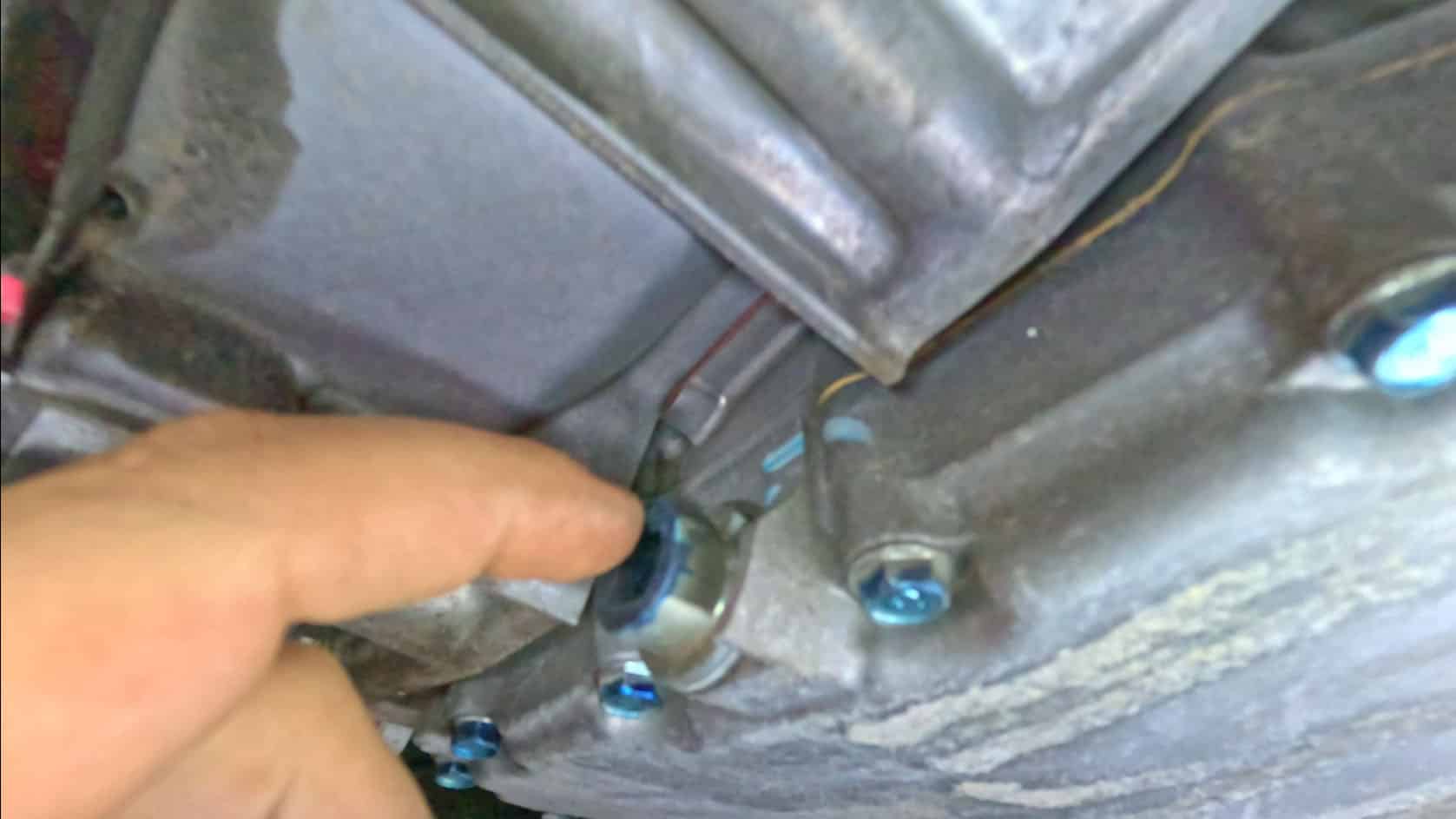

Honda transmission fluid change 2017 Civic CVT drain plug location

This drain port below is at the bottom, below the fill plug. Get your drainage container ready!

Check drainage

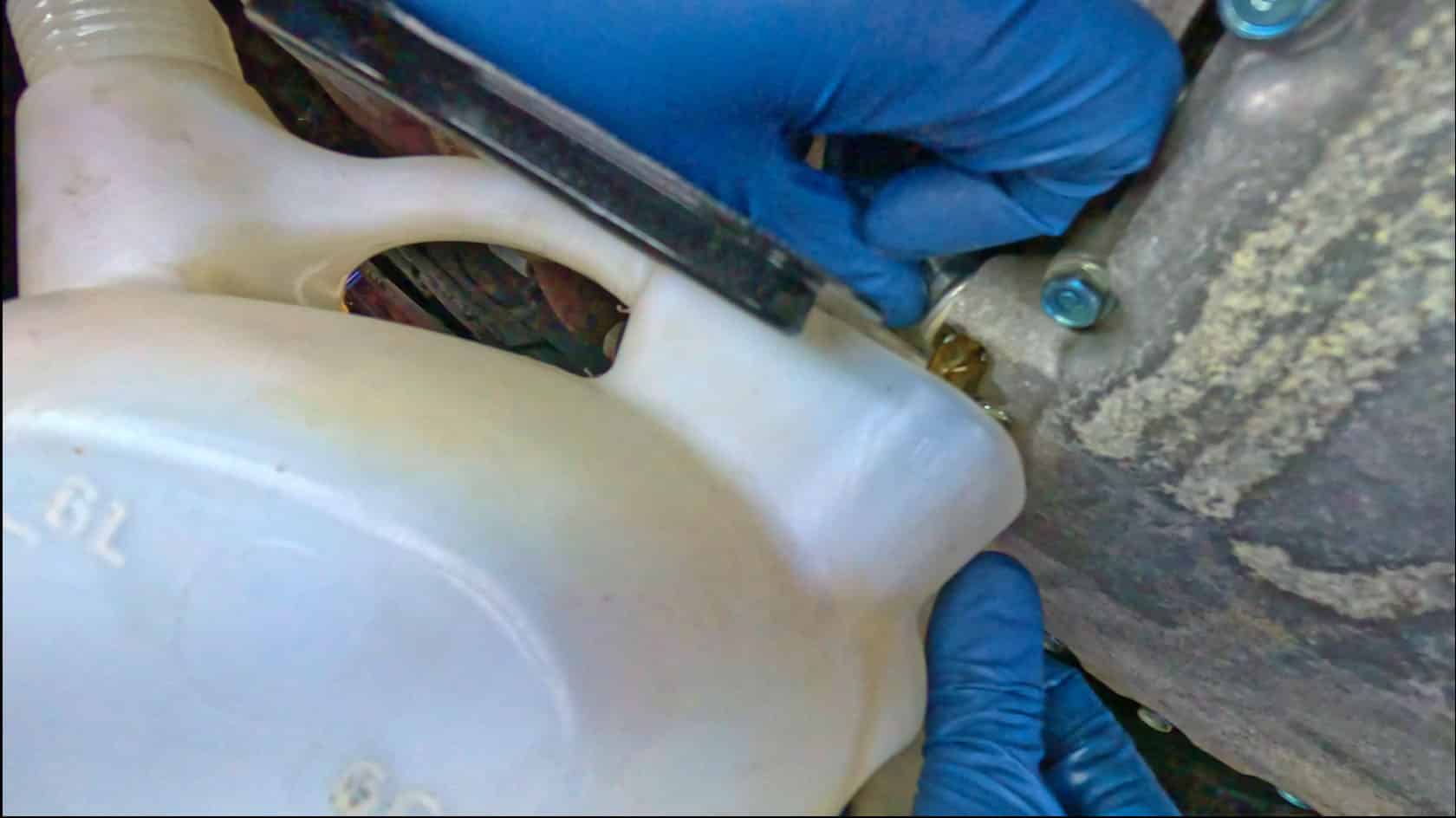

Honda transmission fluid change 2017 Civic CVT drainage

Next, you’ve got to check for any foreign foreign objects, to make sure there’s no debris in the old fluid, which could indicate problems with the transmission. In this case, wow, it looks pretty good so far as it’s coming out.

Honda transmission fluid change 2017 Civic CVT drainage bottle

The reason DEVSPEED technician Victor is draining into one of these awesome jugs that come with their ENEOS Import Lubricant Center oil filling station is they’re trying to see how much fluid is coming out of the transmission. The drain infill is 3.7 quarts and they are trying to catch as much fluid coming out of it so they can check the fluid condition and make sure the fluid amount is what was expected.

Crush washer change

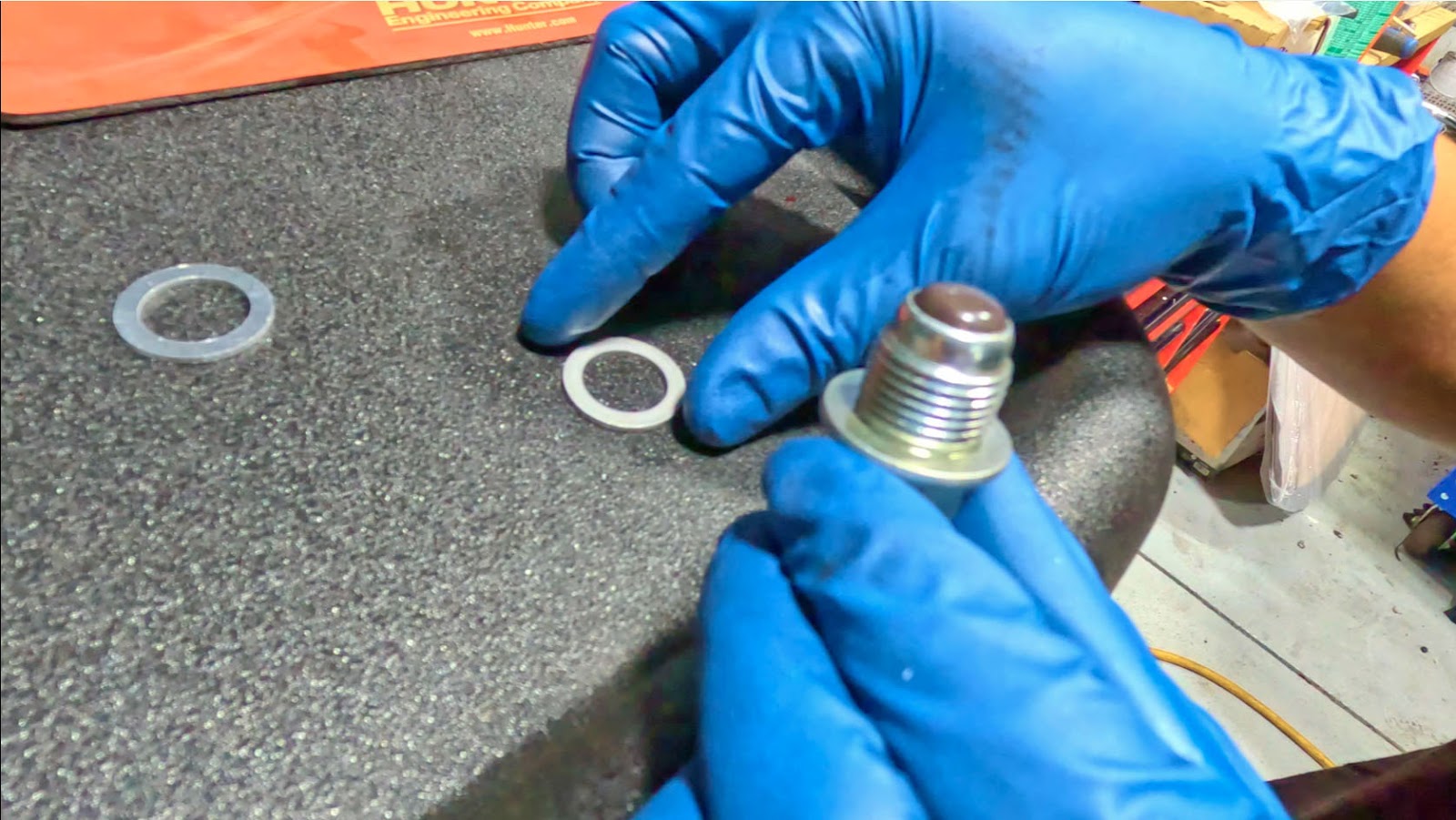

Honda transmission fluid change 2017 Civic CVT crush washer

They’re also going to change this crush washer as well, so it gets a new crush washer before getting put back in. That way the torque is really what it needs to be.

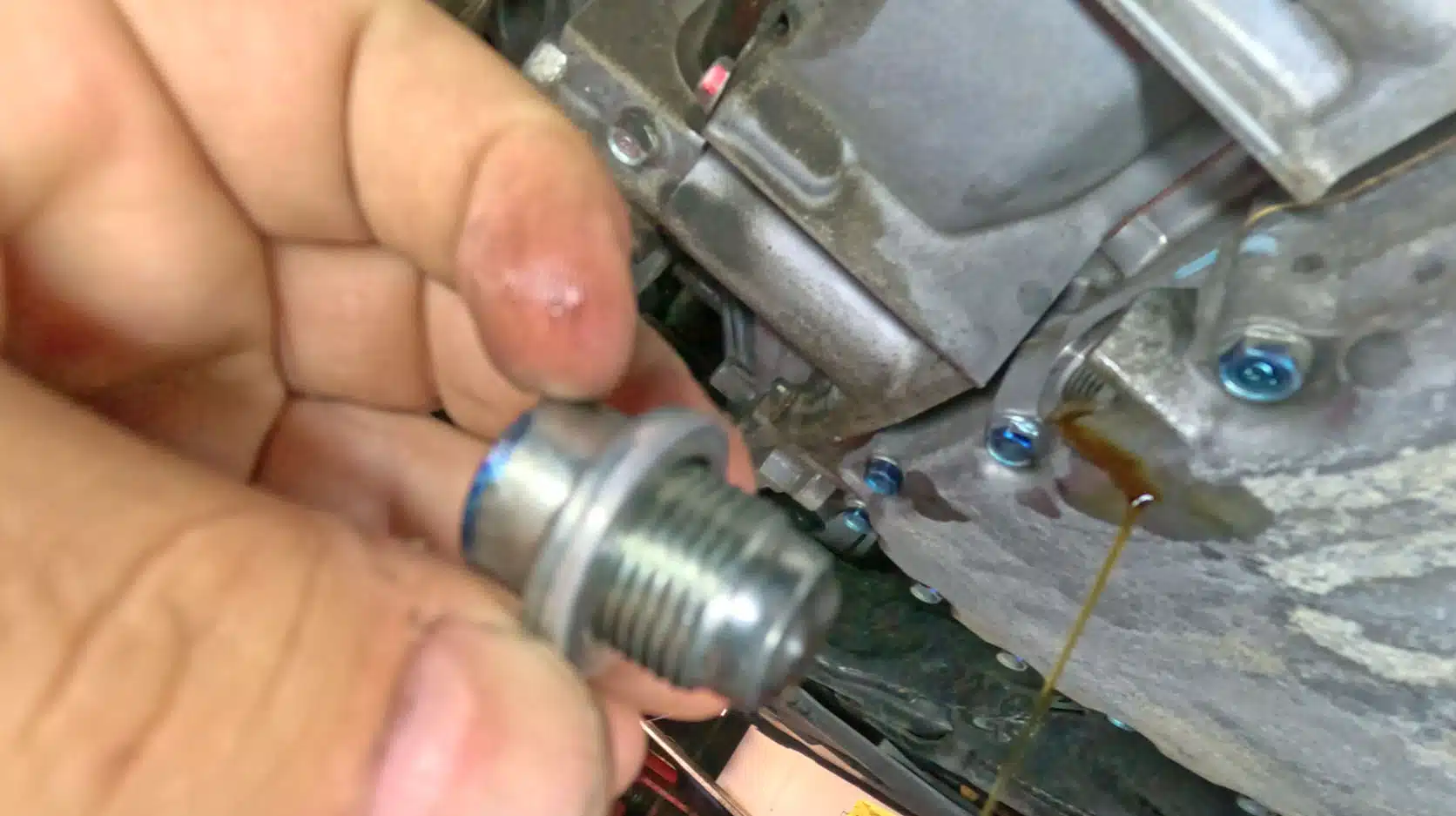

Honda transmission fluid change 2017 Civic CVT drain plug check

If you look at the drain plug, it has a magnetic tip on it, and it had a little bit of debris but nothing major. They just cleaned it before putting it back in.

Fill ‘er up!

For this Honda transmission fluid change in a 2017 Honda Civic they use ENEOS ECO CVT fluid. The cool thing about it is it’s a broad match fluid, which means it can be used on most CVT transmissions. A unique thing about ENEOS is that we’re an OE factory fill company. The majority of new Japanese cars have ENEOS in them. ENEOS knows the specifications of Asian transmissions and engines firsthand.

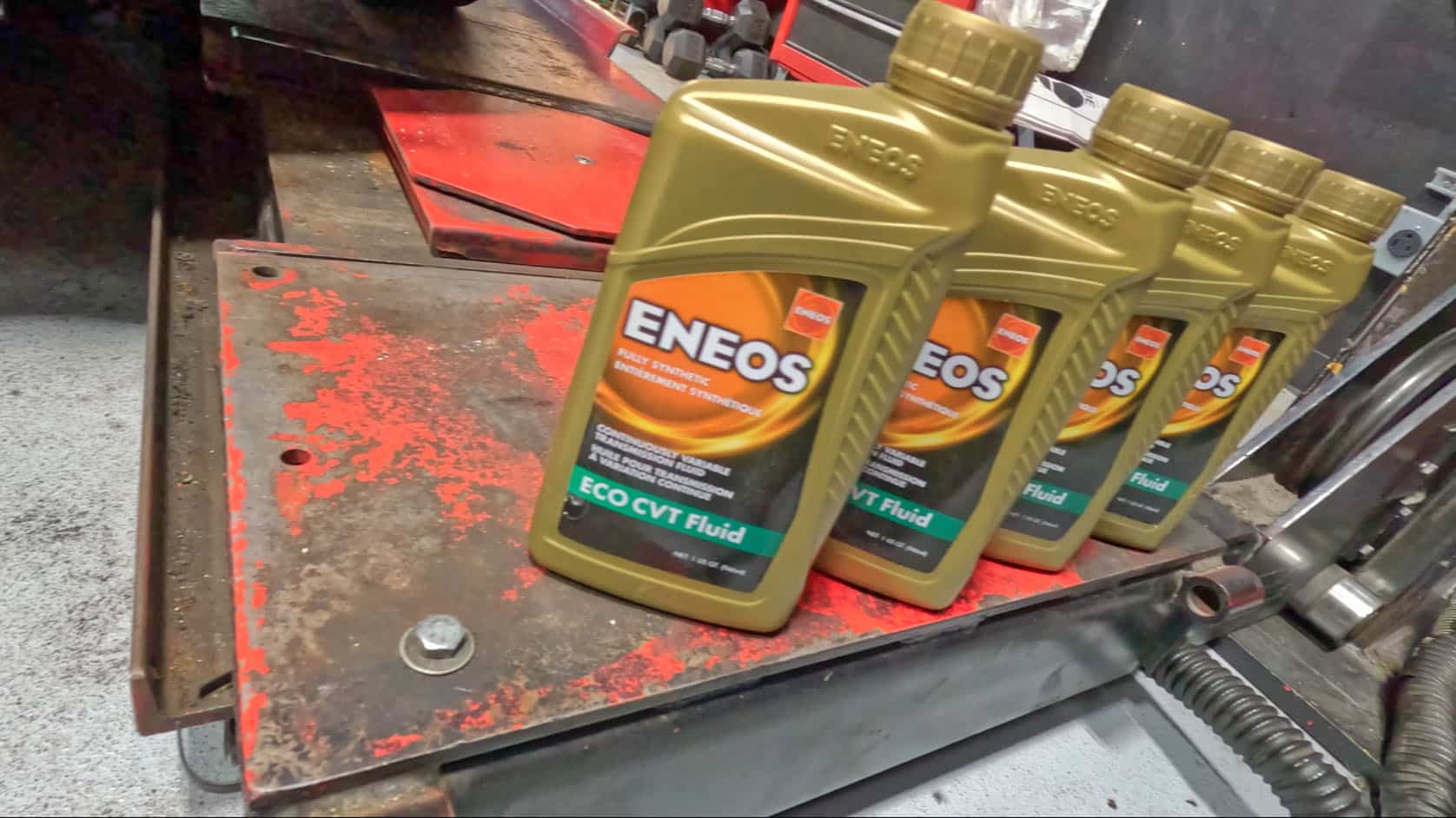

ENEOS ECO CVT 4 1 quart bottles

Here they go, the “magic sauce”!

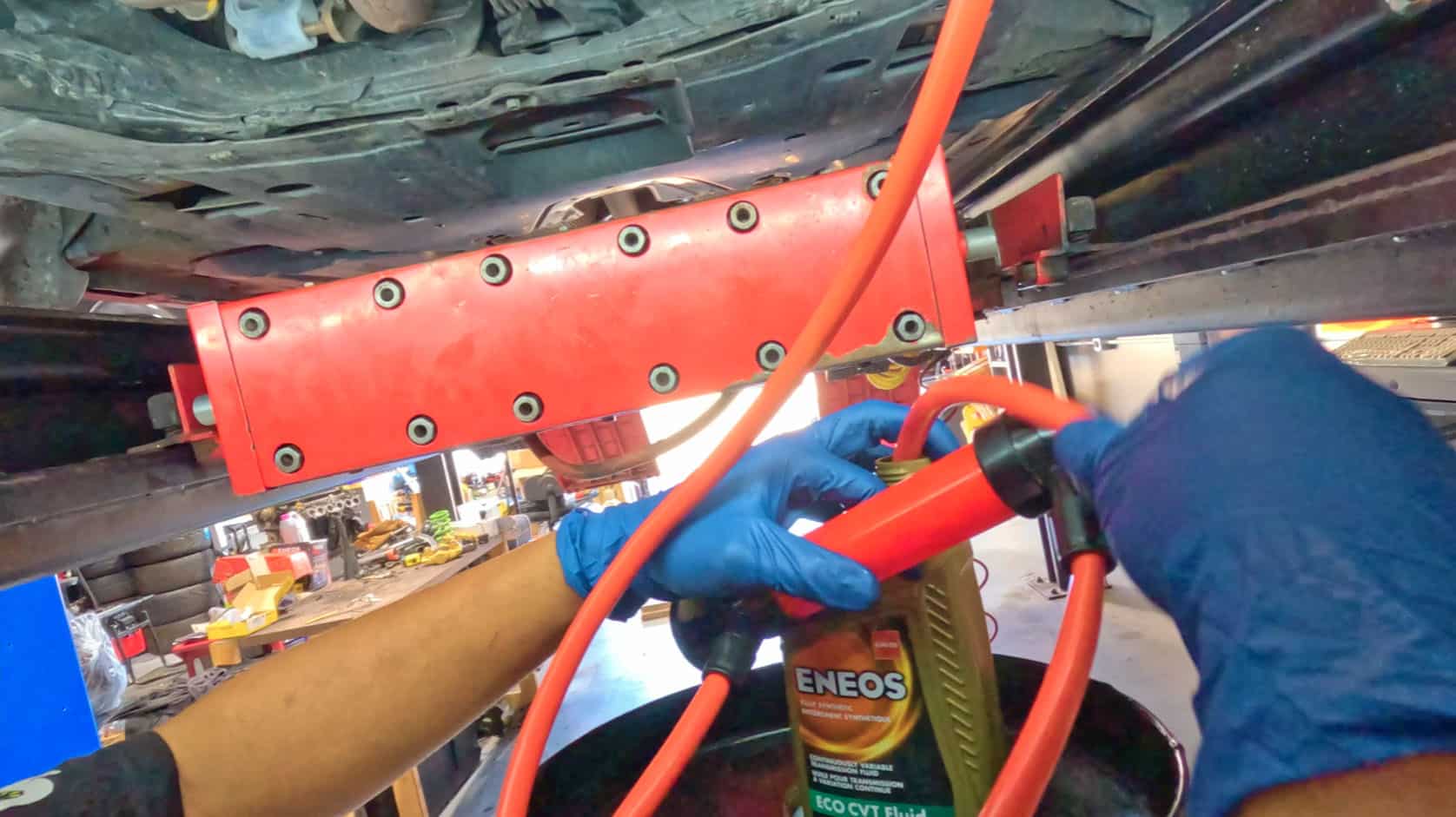

Honda transmission fluid change 2017 Civic CVT fill pump process

How does the fluid get transferred? Victor likes this little fluid pump, Faruk like the syringes, everyone’s got their own thing. Some people have the type of fillers that mount on an impact wrench; Faruk dislikes those personally because it spins it and pumps in the fluid, but the problem is every single time the top flies off or something happens and you “just end up covered in fluid.”

The other fill trick he’s used was to poke holes in the top of the bottles, run a small hose in, and pressurize the bottle. He did that until one of his buddies over-pressurized it and it blew gear oil everywhere, all over underneath the car.

So the preferred methods at DEVSPEED are now the hand pump or syringe.

About the interval
Honda transmission fluid change 2017 Civic CVT fill process featuring Victor

DEVSPEED service tech Victor did not originally like CVT Transmissions. Some manufacturers who came out with the CVT first—that was early 2000s—didn’t tell customers and service techs that we need to change the fluid more often. Normally, because it’s a chain driven style, it creates a little bit more friction that causes the transmission fluid to be burned faster.

For this Honda Civic, it’s 25,000 miles or 36 months, and it’s a pretty simple drain and fill with some ENEOS ECO CVT.

How a CVT transmission works

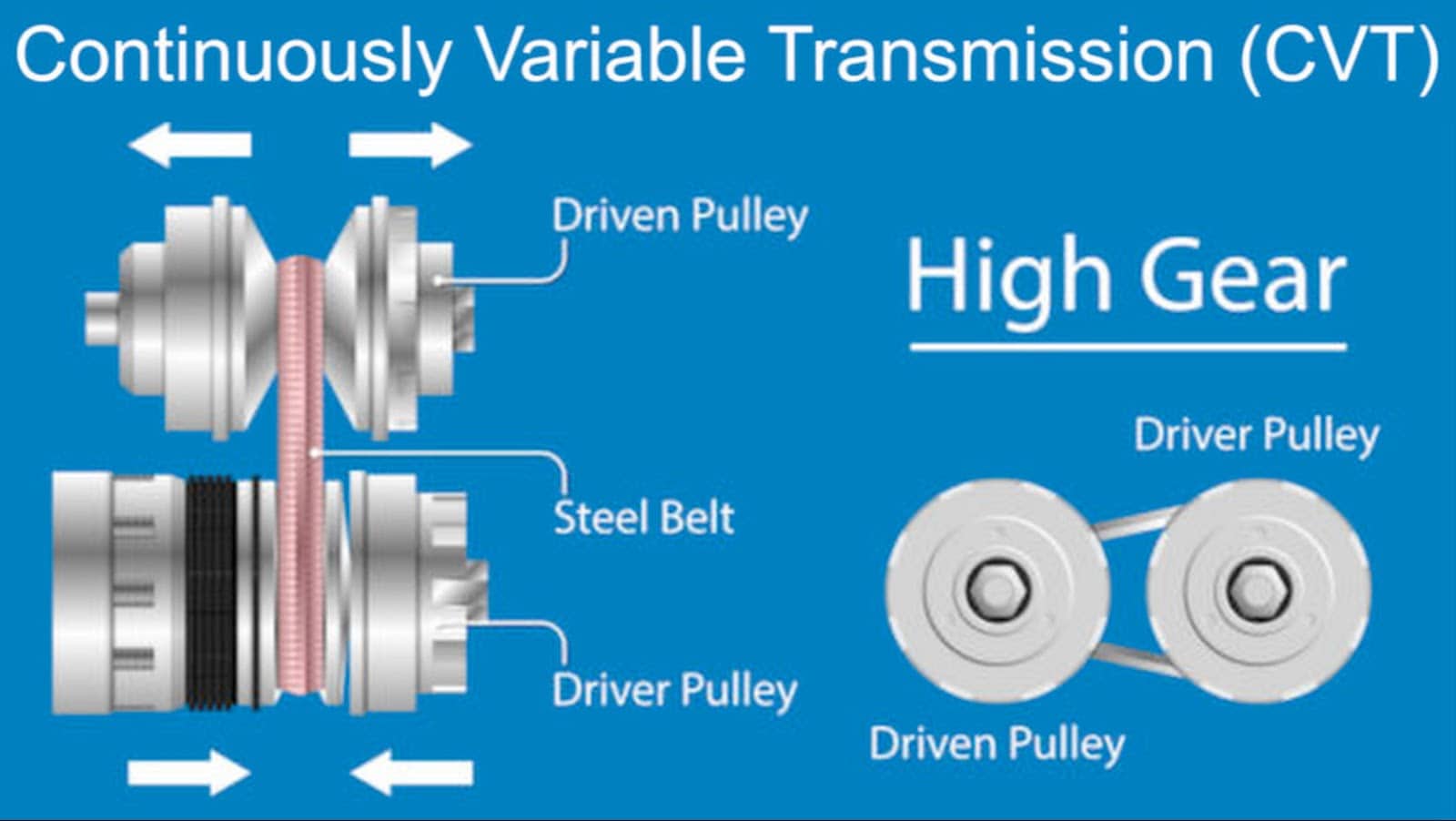

CVT transmission diagram - high gear

The most common type of CVT, or Continuously Variable Transmission, uses a pulley system that allows an infinite variability between the highest and lowest gears with no steps or shifts.

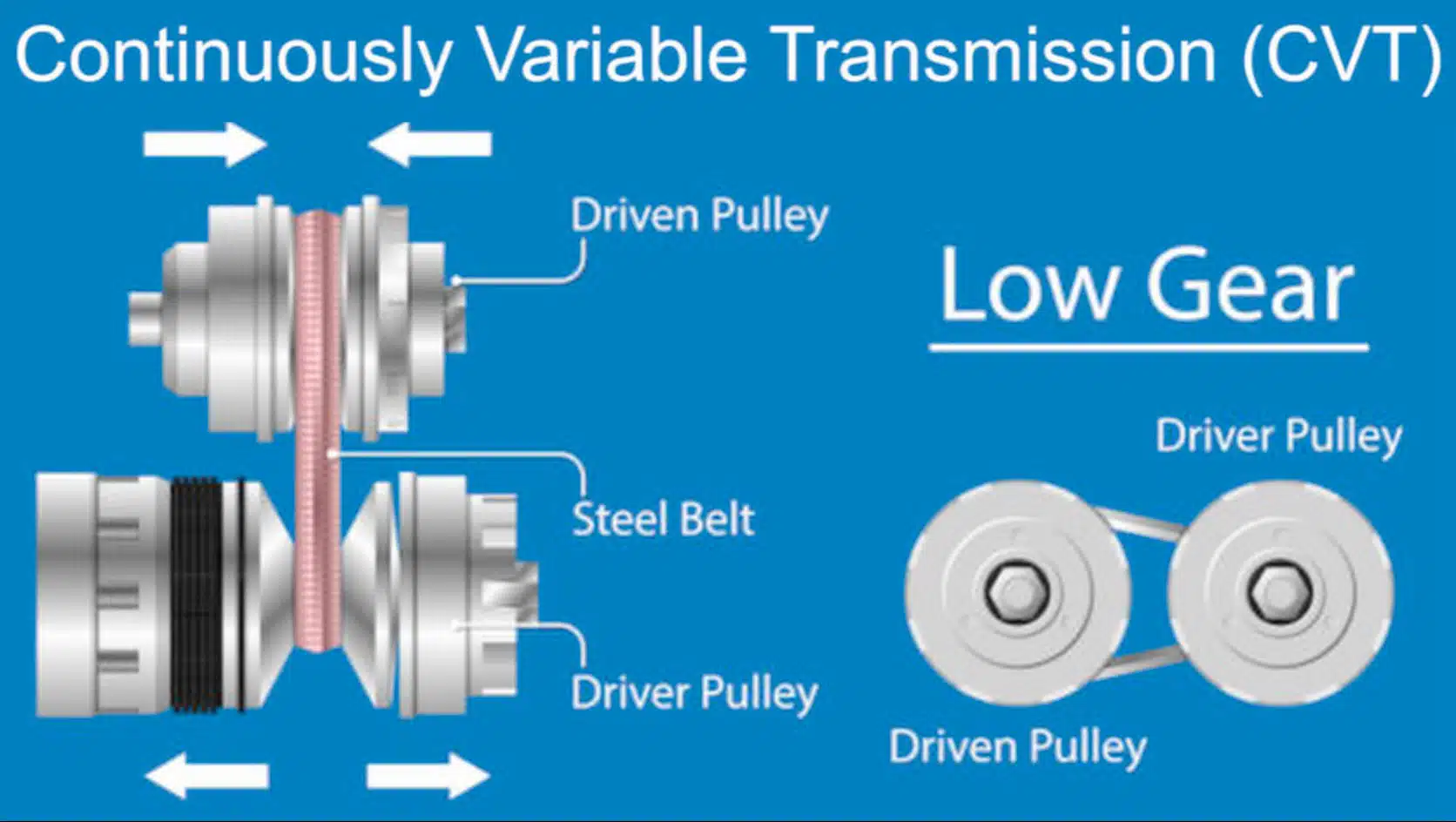

CVT transmission diagram - low gear

Broadly speaking, a “gear” refers to a ratio of engine shaft speed to driveshaft speed. CVTs change this ratio with a set of planetary gears, which are still described as “high” and “low” gears for the sake of convention. It’s this chain-driven pulley system that can burn fluid, meaning it should be changed based on current manufacturer recommendations. Read more about CVT Technology in our Garage dealer portal.

Finishing the service
Honda transmission fluid change 2017 Civic CVT featuring Faruk Kugay explaining how to finish the service

Once they fill the transmission, they snug down the fill plug, but don’t torque it down just yet. What they do first is get inside the car, start it, and warm it back up. The fan is supposed to cycle twice, which lets them know that it’s a proper running temperature, and then Victor will going to run through the gears to make sure they all get coated with fresh fluid. If everything is running smoothly, finish tightening the fill plug.

If you have any questions about ENEOS ECO CVT fluid or the Honda transmission fluid change process, drop us a line and let us know!
